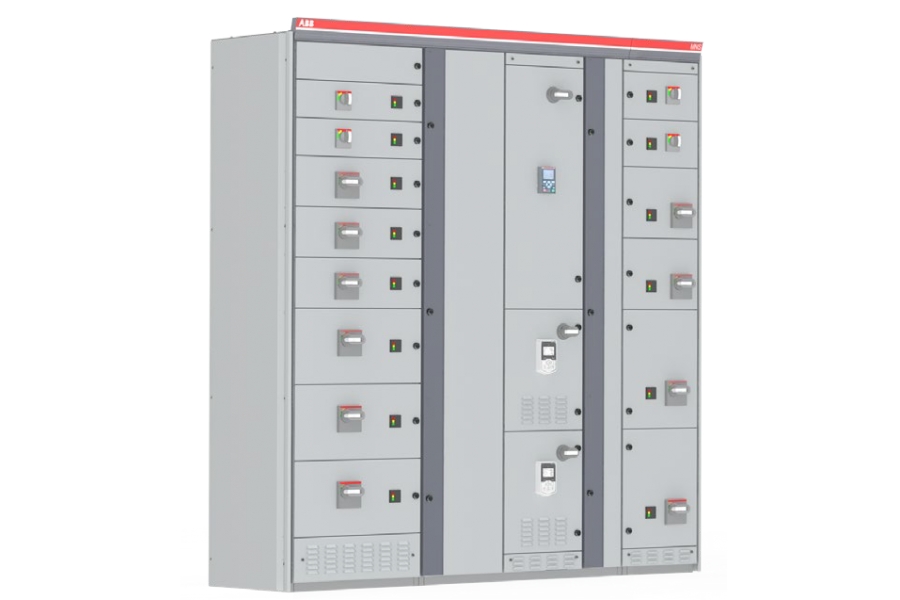

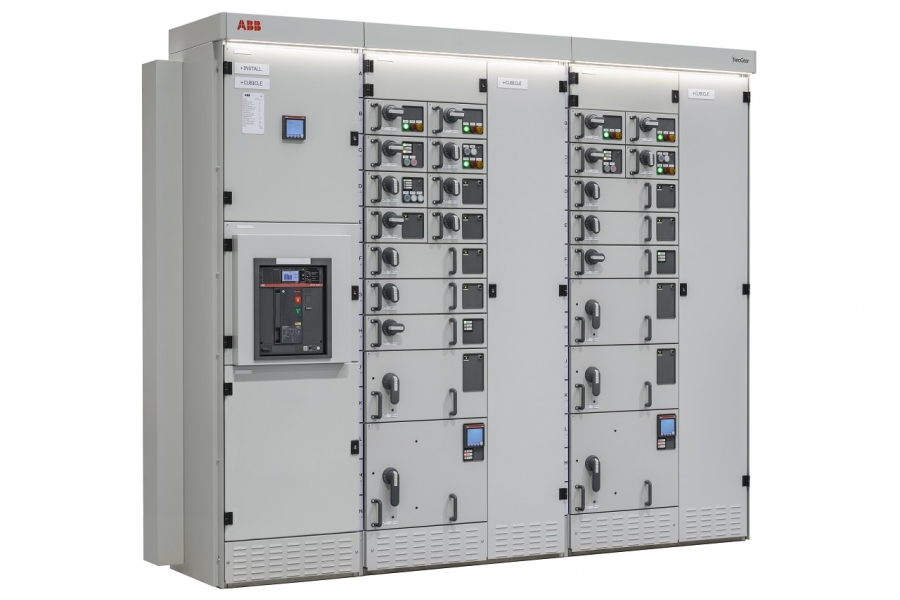

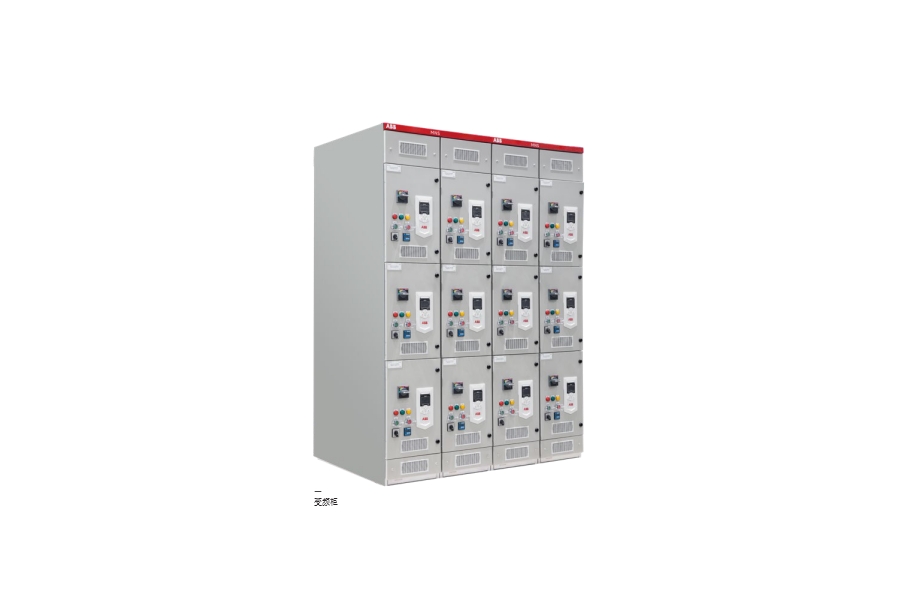

UL Low pressure draw-out switchgear

Since 1972, low-voltage switchgear has been the product of choice for customers. NeoGear brings innovative breakthroughs in low-voltage switchgear technology.

NeoGear helps users in the manufacturing industry adapt to the challenges of changing market demands and create opportunities for business growth. The core of NeoGear is the laminated busbar system, which replaces the traditional horizontal and vertical busbar system. The laminated busbar system is designed to achieve safety performance such as fault arc prevention. NeoGear combines the connectivity and intelligence of the platform and is an outstanding low-voltage switchgear.

In industry, buildings and infrastructure, the operation of all kinds of systems depends on a safe and reliable supply of electricity, and even a brief power outage can have serious consequences. To do this, you need products and systems that can handle a variety of contingencies to meet safety requirements. As the world's leading power distribution system supplier, Xuanhong Power provides customers with stable, reliable, safe and intelligent power distribution solutions. Whether it is energy security or energy efficiency management, UL standards protect you with the strictest safety reliability.

Major advantage

1. The revolutionary design eliminates the danger of contact with the live busbar (arc ignition protection area) and ensures the safety of maintenance personnel

2, reduce the risk of arc caused by mechanical failure, shorten the maintenance downtime

3, compared with the traditional bus system, 92% of the bus components are reduced

4, the drawer is more compact, the size is smaller, the switchgear covers an area of 25%, reducing the capital expenditure of the switch equipment room

5, excellent heat dissipation performance, reduce the heat by 20%, save energy and reduce costs

6, advanced high-performance and durable drawer plug-in

7, through the UL certification (UL:Underwriter Laboratories Inc.) Underwriters Laboratory of America

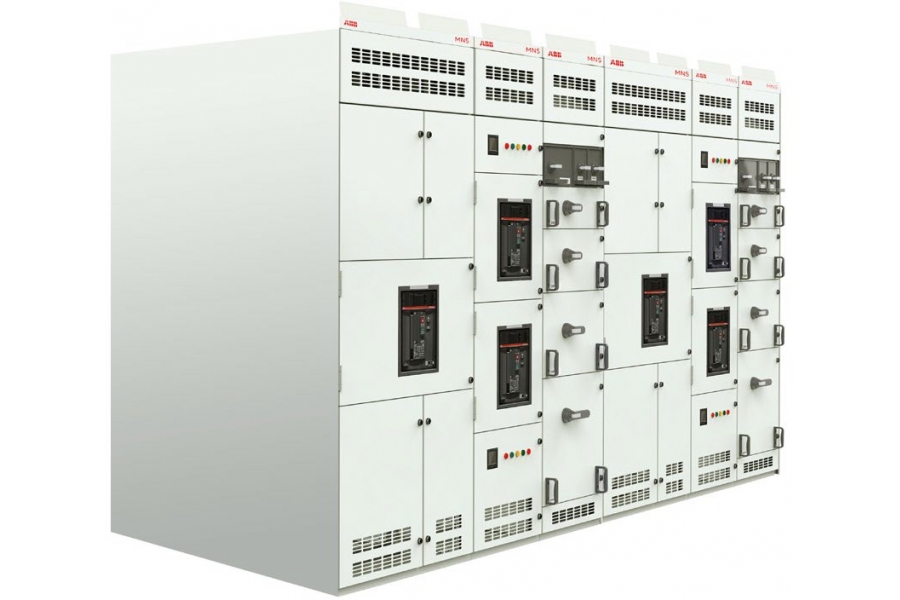

Product summary

Safer switchgear that knows everything

Since 1972, low-voltage switchgear has been the product of choice for customers. NeoGear brings innovative breakthroughs in low-voltage switchgear technology.

digitization

1, the air circuit breaker (ACB) inlet/outlet end and the withdrawal unit of a plug-in installation integrated temperature sensor

2, through the intelligent electrical equipment (such as motor controller M10x, feed management unit FC610, circuit breaker Emax 2, Tmax XT, etc.) for electrical parameters and equipment operating status detection

3. Access the data collected and analyzed by the locally deployed device operation monitoring system through a browser

4, Connect to the monitoring and control system of the plant through serial protocols (Modbus RTU, Profibus DP) and Ethernet-based protocols (Modbus TCP, Profinet, IEC 61850)

5. Optional cloud device health management system

· 6, modular low-voltage switchgear, working conditions to 400/415 V, 3200 A

· 7, comply with GB/T 7251.1/.12, IEC 61439-1/-2 and IEC 61641 3rd edition requirements and pass type tests

· 8, passive arc protection standards 1 to 7, passing the tests required by IEC TR 61641, 3rd edition (up to 400 V, 80 kA / 500 ms)

· 9, laminated busbar system to 3200 A, 80 kA / 1 s

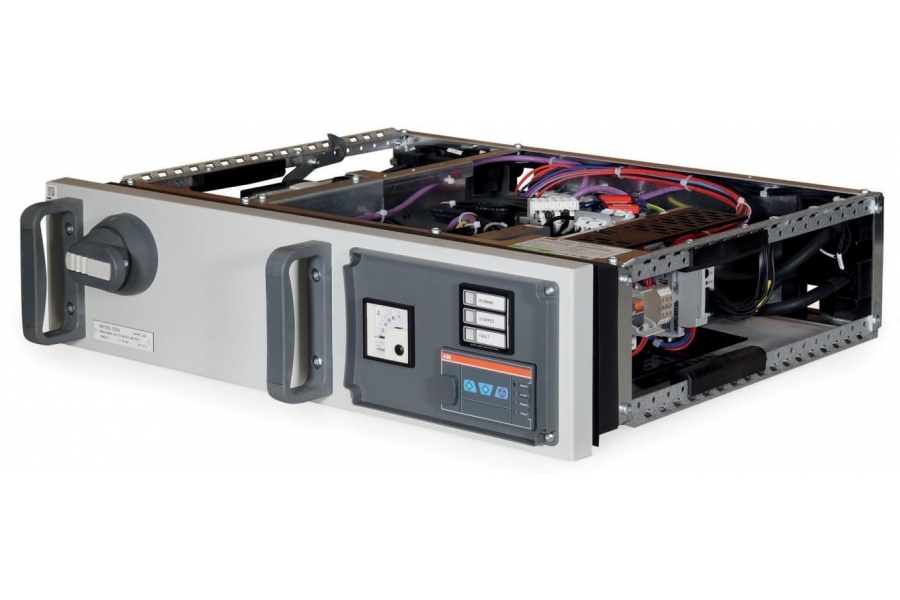

· 10, drawer and plug-in motor circuit and feed circuit

Standard	Packaged switchgear approved by type test			GB/T 7251.1/12，IEC 61439-1/2， EN 61439-1/2，DIN_VDE 0660，第500部分 BS 5486，UTE 63-412
Test report	National Compulsory Product Certification (CCC)&CQC voluntary certification			China Quality Certification Center
	Type test			Shanghai Electrical equipment testing Institute
	Short-circuit strength test			Shanghai Electrical equipment testing Institute
	Fail-arc test (according to GB/T 18859-2016)			Shanghai Electrical equipment testing Institute


Electrical parameter	Rated voltage	Rated insulation voltage		Up to 1000V AC
		Rated operating voltage		Up to 415V AC
		Rated impulse withstand voltage _Uimp		6/8/12 kV*
		Overvoltage level		II/III/IV*
		Pollution level		3
		Rated frequency		Up to 60 Hz
	Rated current	Main busbar	Rated current_le	Up to 5000 A
			Rated peak withstand current_lpk	Up to 220 kA
			Rated short-time withstand current_lcw	Up to100 kA，1 s
		Distribution bus Rated current	_le	Up to 2000 A
			Rated peak withstand current_lpk	Up to 176 kA
			Rated short-time withstand current_lcw	Up to80 kA，1 s
		Anti-fault arc	Rated operating voltage	Up to415 V
			Expected short-circuit current	Up to65 kA
			duration	300 ms
			Decision criterion	Arc Class A
Structural characteristic	dimension	Cabinet and supporting components		DIN41488
		Recommended height		2300 mm
		Recommended width		400，600，800，1000，1200 mm
		Recommended depth		1000，1200 mm
		Basic modulus		E=25 mm符合DIN 43660
	Surface protection	skeleton		Aluminized zinc
		Internal chamber partition board and component mounting plate		Aluminum coated zinc/Hot dip zinc/non-metal
		Mounting beam		Aluminum coated zinc/hot dip zinc
		shell		The lacquer is bright grey RAL 7035
	Protective grade plastic parts	IEC 529		IP30 to IP41
		Halogen-free, self-extinguishing		DIN VDE0304 Part 3
		No CFC, flame retardant		IEC707
		Internal compartments		To Form 3B
