Flexible and reliable to meet the user's various application requirements UL low voltage switchgear

Circuit breakers and main bus current can truly reach 6300 A
The anti-arc capability reaches 100 kA, and the internal separation form reaches form 4 type 7
Incoming cabinets, feeder cabinets and bus-link cabinets using circuit breaker technology, whether of draw-out construction or fixed mounting type, contain 3V/3W type circuit breakers

The power distribution cabinet for the cable feeding circuit adopts the fixed installation structure type, and can be equipped with a plastic-case circuit breaker according to user requirements.

The draw-out design with motor circuit and cable feed circuit has excellent safety and applicability, and provides high operation convenience
Reactive power compensation cabinet can reduce the load of transformer and cable, reduce transmission loss, save electricity costs
Depending on the load structure, the compensation cabinet can be equipped with a non-choke or choke capacitor assembly
A wide variety of mounting plates provide a solid foundation for users to design freely

The cable-fed switchboard with 3NJ4 bar fuse type switch and 3NJ6 bar fuse installation technology is compact, with improved economy, safety and flexibility

Various specifications of horizontal bus solutions to meet a variety of different needs

SIVACON's bus module is economical and safe: the horizontal bus is located at the top of the cabinet

The rated current of single horizontal bus can reach 5000A, and the rated current of double horizontal bus can reach 7400A

Rated current grade according to actual needs: rated short-term withstand current Icw/Ipk up to 150KA(1s)/375KA

The bus compartment and the device compartment are isolated from each other: the bus can be conveniently combined from the top of the cabinet

The arc barrier can limit the internal fault arc: the high-strength door lock and hinge verified by the arc ignition experiment ensure that the cabinet door will not be bounced open when the internal arc failure, and ensure personal safety

Different shell protection levels are available on request, IP20-IP54. The cabinet shell is coated with epoxy resin powder, the standard color is signal white RAL9003, and the ventilation baffle is dark gray RAL7016.

All the non-live parts of the metal structure are reliably grounded, and there are obvious grounding signs to ensure the safety of the operator.

Integrated air circuit breaker with level 1 precision power measurement to help better achieve energy saving and efficiency; At the same time, the smart phone is introduced into the distribution operation and maintenance management through Bluetooth and NFC wireless connection, which truly realizes the digital operation and maintenance management.

Finally, the innovation of the digital module makes it possible to upgrade the 30-second continuous power function of the air circuit breaker during the entire project life cycle, which greatly guarantees the continuity of power supply and protection, as well as the scalability of system functions.

Low voltage complete system, relying on its advanced design concept, rigorous experimental verification and experience in the field of low voltage electrical manufacturing, to ensure the high reliability and safety of products.

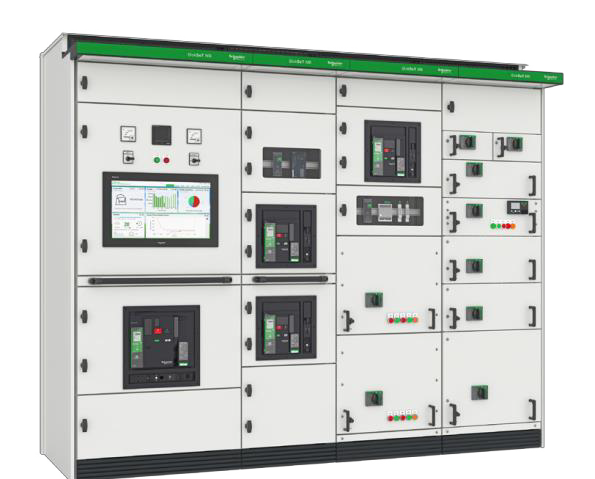

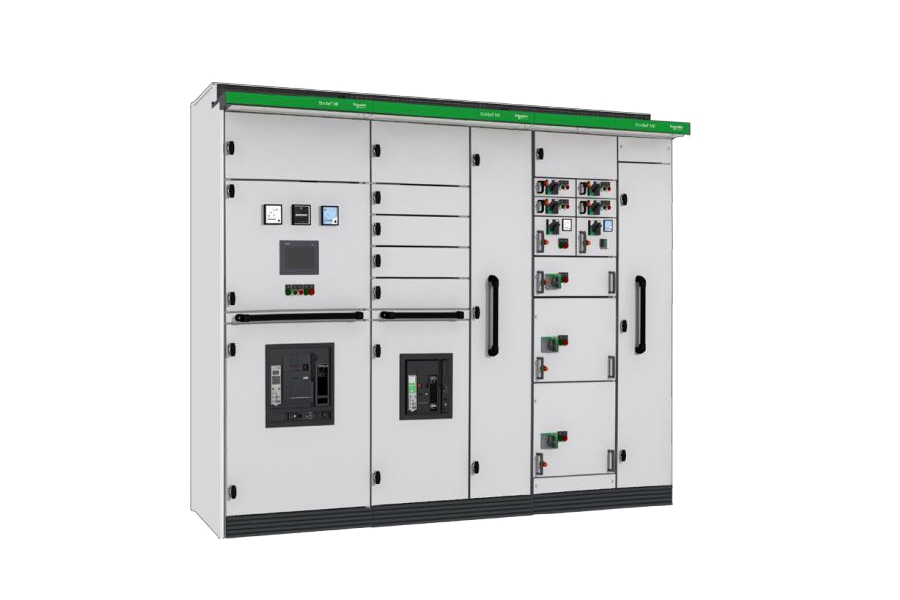

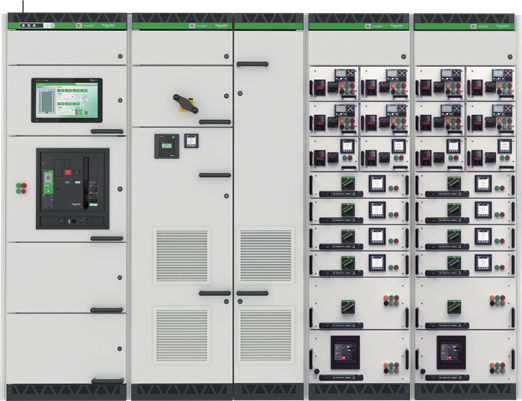

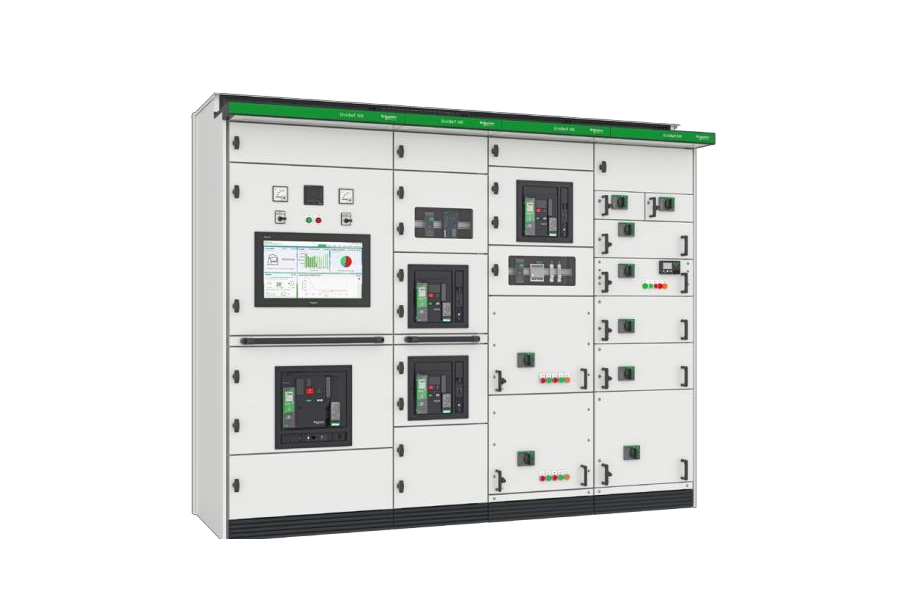

High installation density, the excellent design enables the BlokSeT 5000 to be installed in a single cabinet at a higher density, effectively reducing the number of cabinets in the project, optimizing investment costs, and reducing footprint.

Pre-intelligent interconnection, so that complete equipment can communicate freely

● Smart link QR code, link the key asset information of complete equipment, and integrate anti-counterfeiting function

● The digital panel visually displays the status connection, and provides alarm information such as voltage loss and overtemperature with the gateway

● Configure standard gateway to realize factory interconnection

Multiple measurements make the complete set of equipment self-sensing

● Preset wireless temperature sensor to monitor the temperature of key points in real time and predict the health risks of complete equipment

● Unique V-loss measuring device to capture the loss of pressure in the cabinet

● Scalable PowerTag wireless measurement solution for accurate measurement of electrical energy and easy capture of switching state

A simple digital experience that enables collaboration through software and makes the system think proactively

● Preset solutions of Ecoreal software to enhance partner efficiency and collaborative experience

● Debugging tools for easy configuration, upgrade, information synchronization and gateway switching

● The Clairy-eye platform with a complete set of intelligent QR code, to achieve efficient asset management and preventive operation and maintenance
