UL Single phase air insulated medium voltage switchgear for railway power supply

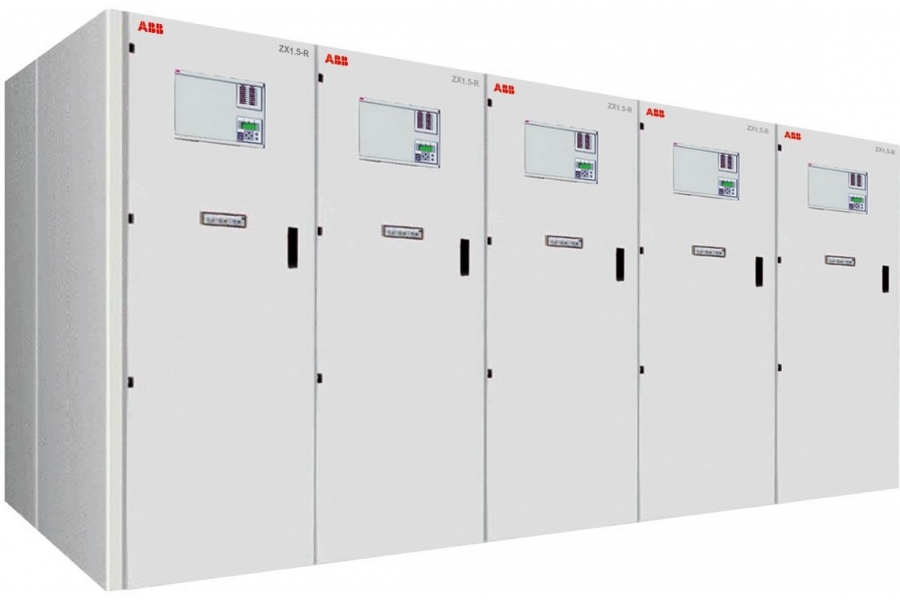

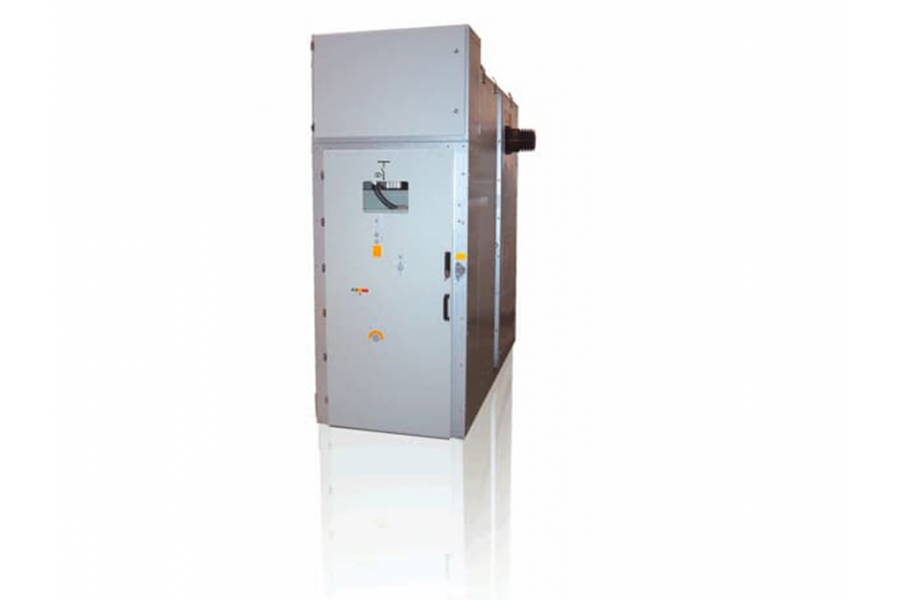

UniGear R medium pressure air insulated railway switchgear consists of single phase air insulated cabinets arranged side by side. Circuit breaker control panel holds single phase vacuum circuit breaker for railway power supply.

UniGear R Medium pressure air insulated railway switchgear standards and specifications for factory assembly, metal housing and type test high voltage switchgear according to IEC 60298 and 60694.

Each cabinet is divided into compartments for electrical equipment (busbars, circuit breakers, cable rooms) and auxiliary equipment (low-voltage rooms, connecting wires and pipes) separated by metal partitions. This design ensures personal and equipment safety in the event of an internal arc failure.

36 and 40.5 kV rated voltage, 16.7 and 50 Hz rated frequency.

Main product features:

· Can be adjusted and integrated according to customer needs

· Provide a high level of protection for personnel and equipment

· No SF6 gas, reduces the risk of human error, is easy to install, and only limited high pressure testing is required during the commissioning phase

· Maintenance-free components for circuit breaker maintenance and repair without downtime

· High power supply reliability, durability, modern design of three-phase standard control Panel UniGear Panel

Metal cladding arc resistant structure and drawer type design

· Arc resistant design according to IEC 62271-200: IAC AFLR 25 kA, 1 second (50 Hz) and IAC AFLR 40 kA, 0.5 second (16.7 Hz)

· Metal shutters automatically operated by the circuit breaker locomotive movement

· Anti-leakage grounding switch

Suitable for advanced control and protection terminals as well as "classic" protection relays

In industry, buildings and infrastructure, the operation of all kinds of systems depends on a safe and reliable supply of electricity, and even a brief power outage can have serious consequences.

For this you need products and systems that can handle a variety of contingencies to meet safety requirements. As the world's leading power distribution system supplier, Xuanhong Power provides customers with stable and reliable,

Safe and intelligent power distribution solutions. Whether it is energy security or energy efficiency management, UL standards protect you with the strictest safety reliability.
