Medium pressure gas insulated switchgear and control equipment

UL standard medium voltage switchgear and ring cabinets are ready to power the distribution grid of the future, providing solutions such as compact substations, small industry, renewable energy and infrastructure.

ZX series and Safe series of medium pressure gas insulated switchgear, equipment configuration is flexible, safe, reliable, economical and practical. Is the ideal choice for users. In addition, with the application of advanced digital protection control technology, sensors and plug technology, leading the development of gas insulated switchgear.

Used in indoor 12/24 Kv/ 40.05 kV and below the field of medium voltage primary and secondary power distribution.
Suitable for: compact secondary substations, light industry, wind power plants, residential, hotels and shopping centers, mines, airports, railways, subways.

dustry, buildings and infrastructure, the operation of all kinds of systems depends on a safe and reliable supply of electricity, and even a brief power outage can have serious consequences. To do this, you need products and systems that can handle a variety of contingencies to meet safety requirements. As the world's leading power distribution system supplier, Xuanhong Power provides customers with stable, reliable, safe and intelligent power distribution solutions. Whether it is energy security or energy efficiency management, UL standards protect you with the strictest safety reliability.

Product summary

It is used in the field of indoor 40.5kV and below medium voltage primary distribution, suitable for indoor installation

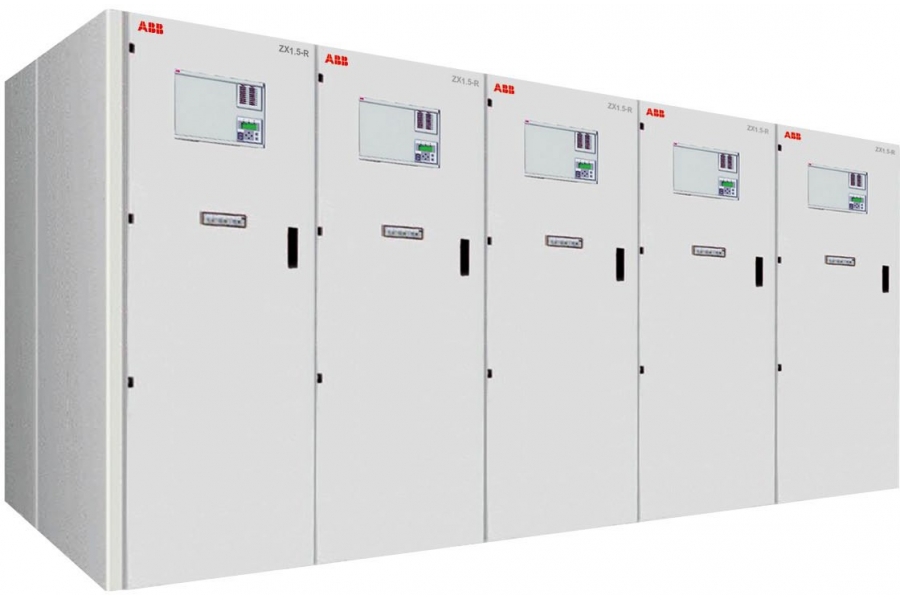

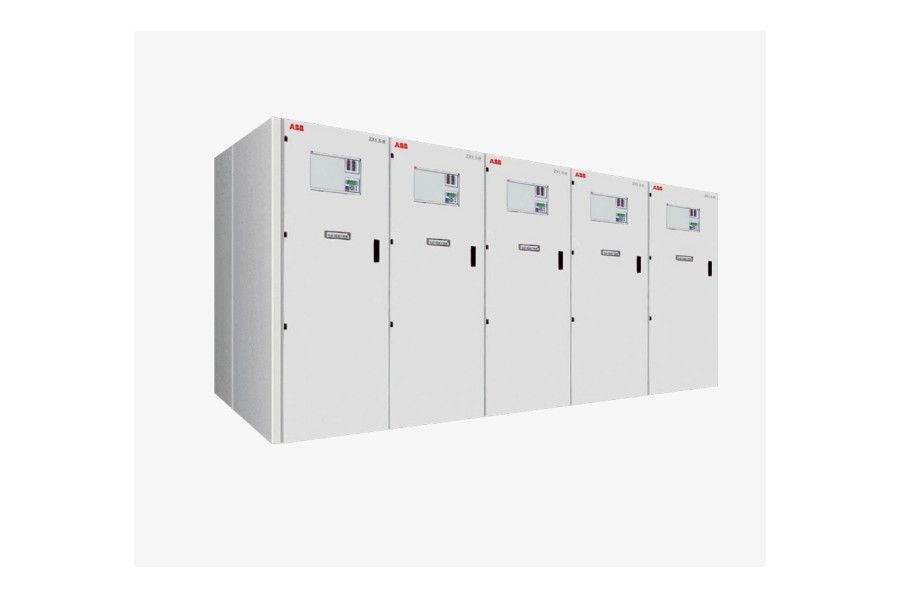

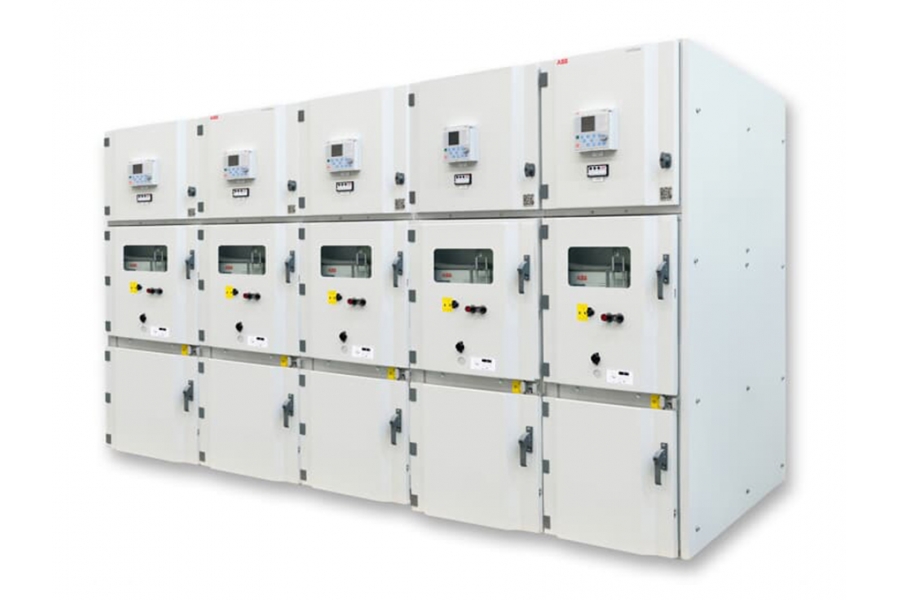

The ZX2 gas insulated metal enclosed switchgear and control equipment is based on a comprehensive and innovative design concept in which all primary live conductors are completely enclosed in high pressure compartments filled with SF6 insulated gas. The circuit breaker compartment and the bus compartment are independent of each other, and the outer enclosure is made of stainless steel plate welded by advanced robots, and the high-voltage live part installed in it is completely unaffected by external environmental conditions. Personnel can not reach the live parts, ensuring the safety of the operation.

The main switch of the ZX2 switchgear uses ABB GE's well-known VD4X vacuum circuit breaker for stable performance and long life, which can meet all the requirements of single and dual bus systems. Suitable for harsh coastal and inland environmental conditions, widely used in subway, power grid, petroleum and petrochemical, public utilities, real estate and other fields.

In addition, according to different needs of users, gas insulated switchgear provides flexible configuration schemes. For example, choose manual or electric operation, circuit breaker or load switch. Wall-mounted and independent installation available.

Major advantage

· Operation safety

· The maintenance requirement is small, and there is no need to gas the equipment on site

· The cabinet adopts miniaturized and modular design to save infrastructure land for users

· Flexible solution application

Main features:

· Rated voltage:... 36 (40.5) kV

· Rated current:... 2500 A

· Rated short circuit breaking current:... 40 kA

· Rated short-circuit closing current:... 100 kA

Product range

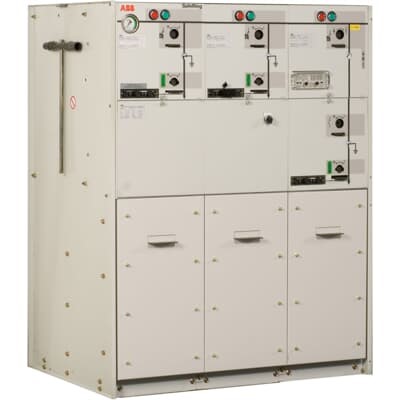

· 12-24 kV, 630 A, SafeRing/Safe Plus SF6 insulated ring cabinet and compact switchgear

· 12 kV, 630 A, SafeRing/SafePlus Air Dry air insulated ring cabinet and compact switchgear

36-40.5kV, 630A, SafeRing/SafePlus SF6 insulated ring cabinet and compact switchgear
