UL67 Standard PDC
UL67 Standard PDC
UL67 Standard PDC

UL67 Standard PDC

Complete distribution box solutions for professionals

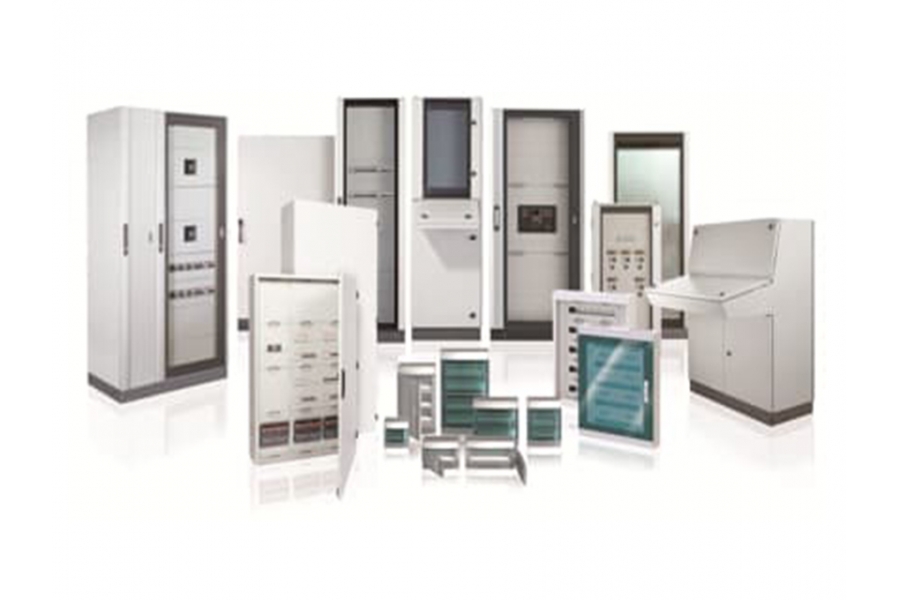

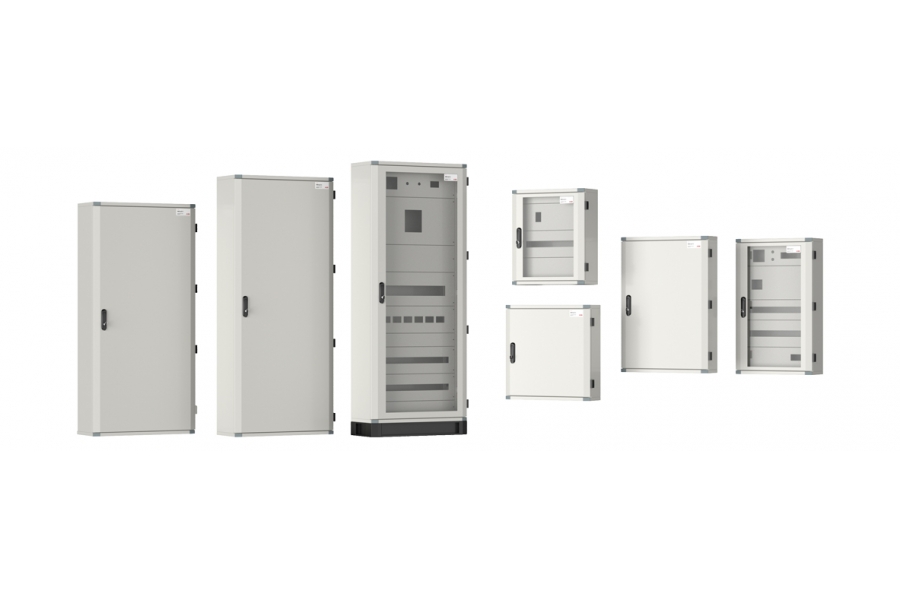

Professionals are looking for simple, fast and flexible distribution box solutions for low-voltage equipment. To this end, System pro E offers high quality distribution boxes and accessories from small terminal distribution boxes to industrial grade automation and power distribution cabinets.

UL standard distribution boxes are used in a wide range of applications, including single-family homes, multi-family homes, commercial buildings, infrastructure buildings and industrial applications, all of which comply with international standards and regional codes. Whether it is power metering, control or distribution, UL's System pro E series products are the ideal choice for professionals.

According to the requirements of the site, the function can be customized to meet the harsh industrial and mining environment conditions of the site, waterproof, dustproof, anti-corrosion, explosion-proof, anti-low temperature and other special operating environment applications.

Through the UL certification (UL:Underwriter Laboratories Inc.) Underwriters Laboratory of America


Product summary Product parameter

                               Safe, reliable, intelligent low-voltage UL power distribution solutions

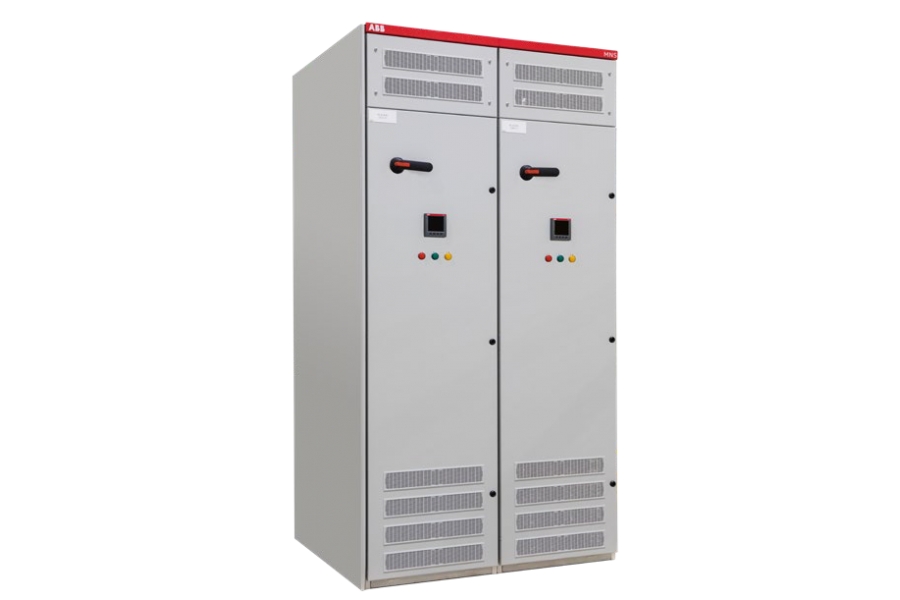

UL67 standard power distribution cabinet is suitable for power plants, industrial and mining enterprises, shopping malls, hospitals, schools, high-rise buildings and other types of building unit lighting distribution, AC 50Hz, rated working voltage 220V-400V, Rated working current 630A and below three-phase three-wire or three-phase four-wire infrequent operation of the power distribution system for power distribution, dual power switching, fire control, motor control, distribution line for control and lighting distribution. Provide protection against overload, short circuit and leakage of the line. The products have the advantages of novel structure, beautiful appearance, convenient and reliable installation, and can be customized according to different voltage levels. The products are widely used in industrial and mining enterprises, shopping malls, hospitals, schools, high-rise buildings and other types of buildings.

Technical parameters:


item
argument item
argument
Rated voltage of main loop
communication380VBus bar rated short-time withstand current Icw
15kA
Rated frequency 50Hz
Electrical clearance ≥10mm
Rated insulation voltage 660V Creepage distance
≥12.5mm
Rated current of main bus
630A~100A Class of protection

IP30/IP40(Indoor type)

IP55/IP65(Outdoor type)
